200 kW Volvo Diesel Generator

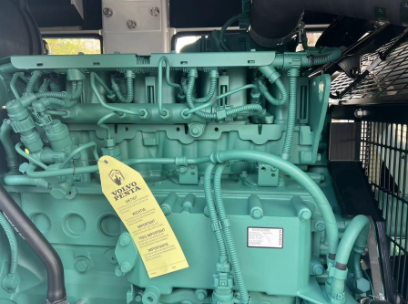

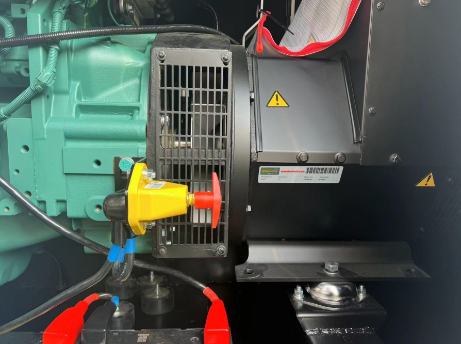

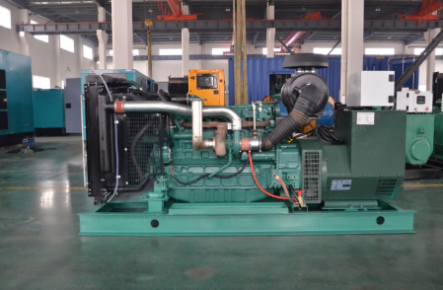

The 200 kW Volvo is the most powerful generator in our lineup. A turbocharged six-cylinder Volvo TAD754GE diesel and a Stamford UCI274H14 alternator deliver 200 kW prime (250 kVA at 0.8 power factor) and 220 kW standby, at 480V three-phase, four-wire and 60 Hz with 300 A rated current.

A voltage transfer terminal board with copper links lets the output be set to 480/277V three-phase, 240/127V three-phase or 220/110V single-phase, so one model can serve different services. It suits larger commercial and industrial facilities and multi-building sites that need substantial standby or prime power. A Deep Sea DSE7320 controller handles automatic starting, monitoring and protective shutdowns.

Fuel and runtime

At full load the spec sheet lists fuel consumption of 215 g/kWh, which works out to roughly 51.2 liters (about 13.5 US gallons) of diesel per hour. With the 400-liter (about 106-gallon) base tank that is around 8 hours at full load, and longer at the partial loads most sites actually draw.

For outages longer than that, plan an external fuel supply. We can talk through the options during the site assessment.

Size and weight

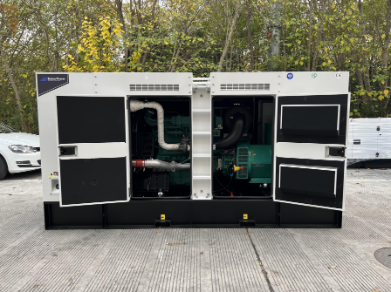

The silent canopy measures 3,500 × 1,300 × 1,830 mm, and the set weighs about 3,500 kg with its 400-liter fuel tank. It needs a reinforced pad, crane or heavy-lift access at delivery, and clearance for airflow and service.
