25 kW Yangdong Diesel Generator
Export-only 60 Hz 25 kW Yangdong diesel generator with 220V single-phase output and built-in plugs, supplied in a silent-type enclosure.
- Prime power
- 25 kW
- Standby power
- 27 kW
- Engine
- Yangdong Y490D
- Fuel
- Diesel
Questions? Call (786) 856-3865 · Mon–Fri 8am–5pm
25 kW Yangdong Diesel Specifications
| Specification | Value |
|---|---|
| Genset rating | |
| Spec sheet model | Yangdong-EPYD-25GF |
| Prime power | 25 kW |
| Standby power | 27 kW |
| Voltage | 220V |
| Phase | Single-phase, 2-wire |
| Frequency | 60 Hz |
| Power factor | 1.0 |
| Rated current | 113 A |
| Engine | |
| Engine | Yangdong Y490D |
| Cylinders | 4, four-stroke, direct injection |
| Speed / governor | 1,800 rpm, mechanical governor |
| Steady-state speed droop | ≤ 1% |
| Fuel | Diesel |
| Fuel consumption (100% load) | 230 g/kWh |
| Lube oil capacity | 8 L |
| Coolant capacity | 8 L |
| Radiator | Rated for 50 °C |
| Starting | 24 V DC electric start |
| Alternator & control | |
| Alternator | Wetech WT184E |
| Alternator type | Brushless, self-excited, Class H insulation, IP23 |
| Controller | Deep Sea DSE6120 |
| Outlets | Built-in plugs |
| Compliance (as listed) | Designed to comply with ISO 9001 and CE |
| Dimensions & weight | |
| Silent type | 2,000 × 850 × 1,180 mm (approx. 79 × 33 × 46 in) |
| Silent type weight | 950 kg (approx. 2,094 lb) with 50 L base fuel tank |
| Availability | |
| Sales | Export only |
| Price | |
| Price | $11,250 USD |
Data from the manufacturer’s spec sheet and product listing. Specifications may change without notice. Download Spec Sheet (PDF)
Overview
A 25 kW diesel generator for export
The 25 kW Yangdong is sold for export only. It is aimed at buyers shipping a generator to a 60 Hz market that uses 220V single-phase power, and it is not offered for installation in the United States. For a U.S. site, look at the 20 kW Perkins Diesel Generator or the 30 kW Cummins Diesel Generator instead.
At $11,250 it is the lowest-priced generator we list. A four-cylinder Yangdong Y490D diesel at 1,800 rpm produces 25 kW prime and 27 kW standby, with 220V single-phase, two-wire output at 60 Hz (113 A rated current, power factor 1.0). The listing notes built-in plugs, so tools and equipment can be connected directly at the set.
Typical uses
Single-phase sets in this size range are commonly used as standby or prime power for homes, small farms, workshops and small commercial buildings, and as job-site power where the grid is unreliable.
Fuel and runtime
At full load the spec sheet lists fuel consumption of 230 g/kWh, which works out to roughly 6.8 liters (about 1.8 US gallons) of diesel per hour. With the 50-liter (about 13-gallon) base tank that is around 7 hours at full load, and longer at the partial loads most sites actually draw.

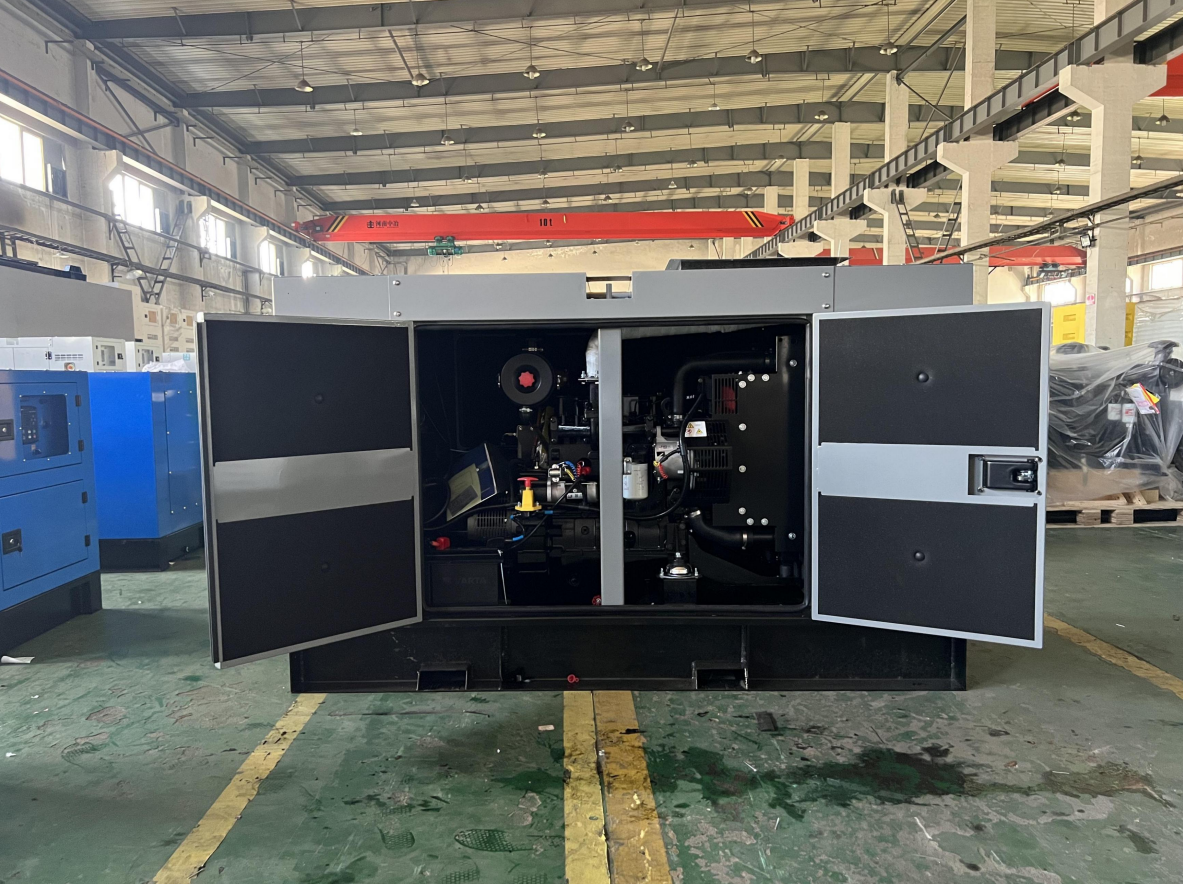

Enclosure and controls
The silent-type canopy measures 2,000 × 850 × 1,180 mm and the set weighs about 950 kg with its 50-liter base tank. It uses a Deep Sea DSE6120 auto-start controller, a Wetech WT184E brushless alternator, a radiator rated for 50 °C, 24 V DC electric start, an industrial silencer and vibration isolators on the base frame.
Sizing
Is the 25 kW Yangdong Diesel the Right Size?
- Confirm the destination’s supply: this unit is built for 220V single-phase at 60 Hz.
- Add up the running load and allow extra capacity for motors starting, which briefly draw several times their running current.
- Use the 25 kW prime rating for continuous loads and keep the 27 kW standby rating for emergency use.
- Tell us the destination country and how the unit will be shipped so we can confirm the configuration before you order.
Not sure? Send us a list of your loads and we will help you choose. See the generator sizing guide for every model.
Support
Delivery, Installation & Support
Eaton Power & Equipment is based in St. Lucie West, Port St. Lucie, and keeps South Florida powered with generators, turnkey installation and ongoing support. We also offer installation services throughout the USA, handling the job from site assessment to final testing in line with applicable safety standards and regulations.
Every generator set in this range goes through a factory test program at 50%, 75%, 100% and 110% load, including checks of all control and safety shutdown functions, before it ships.
Plan your installationFAQ
